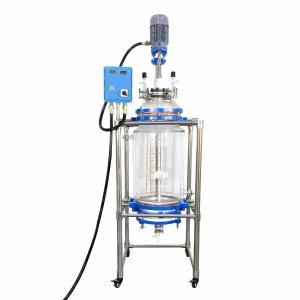

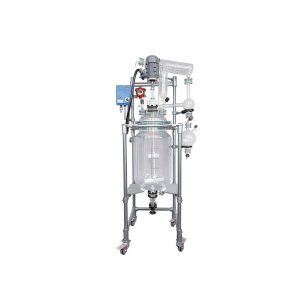

Double-layer Glass Reactor

Double-layer Glass Reactor: used for material synthesis, distillation, concentration, and other experiments.

Material

glass

Capacity (L)

10-10000+

Mixing system

anchor, paddle, frame and others

Heating system

electric heating, oil heating and others

The double-layer glass reactor is mainly used for experiments such as material synthesis, distillation, and concentration. The kettle can be pumped to a negative pressure state as required to meet the experimental conditions. The material is evenly added dropwise by adjusting the constant pressure funnel or the regulating valve on the feeding bottle. The reaction product is recovered by distillation using the heat exchange function of the condenser. The kettle body of the double-layer speed-regulating glass reactor has two layers: inner and outer. By injecting a certain temperature of circulating liquid into the interlayer, the temperature of the material in the kettle is adjusted. The working principle and characteristics of double-layer glass reactor.

Request a quote
|

The double-layer glass reactor mainly uses its double-layer glass characteristics. The reaction material (also called reaction solvent) can be placed in the interlayer of the kettle body, and the double-layer glass reactor can perform a double-layer reaction by stirring the reaction under normal pressure or negative pressure. A constant temperature (high or low temperature) hot solution or coolant is injected into the inner layer of the kettle to heat or cool the materials in the double-layer glass reactor at a constant temperature and provide stirring. In this way, the medium (such as freezing liquid, heated water heated oil, etc.) in the double-layer glass reactor interlayer is heated or cooled through stirring to perform a cyclic reaction. It is widely used as an ideal device in modern biochemical new material synthesis experiments.

Not only that, the working ability of the speed-adjustable double-layer glass reactor is even better. The reaction solvent can be put into the inner layer of the glass for stirring reaction, and the interlayer can be connected to different cold and heat sources (refrigerated liquid, hot water, or hot oil). Do cyclic heating or cooling reactions. Constant temperature (high or low temperature) hot melt medium or cooling medium is injected through the interlayer of the double-layer glass reactor to heat or cool the material at a constant temperature. At the same time, the stirring reaction can be carried out under normal pressure or negative pressure according to the requirements of use. The materials react in a double-layer glass reactor, and the evaporation and reflux of the reaction liquid can be controlled. After the reaction is completed, the material can be discharged from the discharge port at the bottom of the kettle, and the operation is extremely convenient.

Features of double-layer glass reactor

1. Stirring motor DC brushless motor.
2. AC low-speed booster motor.
3. Imported stirring seal, stirring paddle integrally formed. tetrafluoro paddle, no leakage, no pollution.
4. Anchor type, paddle type, frame type, multi-layer blade. variable frequency speed regulation controller variable. frequency step-less speed regulation.
5. Double sealing technology.
6. Manual lifting + electric lifting + sliding.
7. Safety protection (delay, overcurrent, overheating protection, etc.)
8. Compact design, saving space.
9. Split bath.

Double-layer glass reactor price

Of course, the prices of different glass reactor manufacturers are different. Due to the difference in raw materials, production costs, and technical costs, the factors affecting the price of equipment of different manufacturers are also different, and the pricing is also different. Therefore, users first need to understand the technical strength and after-sales service of the manufacturer and re-determine the price.

Double-layer glass reactor supporting equipment

1. Refrigeration and heating integrated machine.
2. Low-temperature cooling circulator.
3. High-temperature heating circulator.
4. Circulating water vacuum pump/diaphragm vacuum pump.

Volume (L) Jacket volume (L) Power (w) Rotating speed (rpm) Temperature tube (mm) Condenser Collection device/ Dropping device Size (mm) Power supply
5 2 90 0-600 360 Serpentine condenser Optional 5-50L collection bottle 550*550*1500 220V/50Hz
10 3 90 0-600 400 Serpentine condenser Optional 5-50L collection bottle 700*600*2100 220V/50Hz
20 6 90 0-600 530 Serpentine condenser Optional 5-50L collection bottle 700*600*2300 220V/50Hz
30 10 90 0-600 600 Serpentine condenser Optional 5-50L collection bottle 700*600*2400 220V/50Hz
50 16 120 0-600 650 Serpentine condenser Optional 5-50L collection bottle 700*600*2400 220V/50Hz
80 24 180 0-600 850 Serpentine condenser Optional 5-50L collection bottle 700*600*2450 220V/50Hz
100 30 180 0-600 1000 Serpentine condenser Optional 5-50L collection bottle 1000*750*2300 220V/50Hz
150 35 400 0-600 1800 Serpentine condenser Optional 5-50L collection bottle 750*750*2500 220V/50Hz
200 40 750 0-600 1200 Serpentine condenser Optional 5-50L collection bottle 1300*1000*3200 220V/50Hz
