The jacketed reactor has the advantages of simple structure, high-temperature resistance, corrosion resistance, strong production capacity, convenient processing, and low energy consumption. Small space and operating area, convenient operation and maintenance, easy-to-make materials form axial flow pattern and disperse each other, increase the contact area between different phases, and greatly accelerate the process of heat transfer and mass transfer.

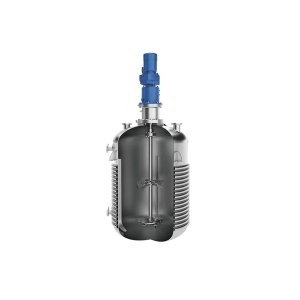

The jacketed reactor is mainly composed of a stirring vessel (including a tank body and a jacket), a stirring device, a transmission device, a shaft sealing device, a bracket, a manhole, a process connection, and some accessories. Most of them are medium and low-pressure pressure vessels. The jacketed reactor is a device that mixes two or more liquids of a certain volume and liquid and solid or gas materials with the aid of a stirrer at a certain pressure and temperature to promote their reaction. The jacket on the kettle body is mainly used for heating and cooling modules.
The function of a jacketed reactor
1. The jacketed reactor has a compact structure, KF fast screw design, one-button opening and closing, and easy operation;
2. The jacketed reactor is electrically lifted and separated from the heating furnace;
3. The jacketed reactor has a built-in condensation coil;
4. It has a bottom tube sampling function;
5. Support catalyst filtration;
6. LCD true color full touch operation interface;
7. No need for cooling water magnetic coupling stirring;
8. Cast copper heater, high heating uniformity, and fast heat transfer;
9. Supports heat preservation timing and start timing, dual timing mode;
10. Supports remote control, has RS485 communication port, and can be equipped with host computer software;
11. It has the functions of data collection, recording, and report export;
12. Supports pressure digital display function and can freely switch between multiple pressure units;
13. It has a safety interlock function and an over-temperature and over-pressure alarm function.
Application range of jacketed reactor
Jacketed reactors are mainly used in synthetic plastics, synthetic rubber, synthetic fibers, pesticides, pigments, resins, fertilizers, and other industries. , chemical, food, light industry, and other industries. Among them, the jacketed reactor with agitator is a commonly used reaction equipment in the fine chemical industry, coating, hot melt adhesive, medicine, food, and other industries.
Jacketed reactor selection and classification
Jacketed reactors are generally classified according to the form of jacket heating, and are divided into electric heating rod heating jacketed reactors, steam heating jacketed reactors, and heat transfer oil circulating heating jacketed reactors. Different types of heating jacketed reactors should be reasonably selected according to actual needs and usage conditions.
